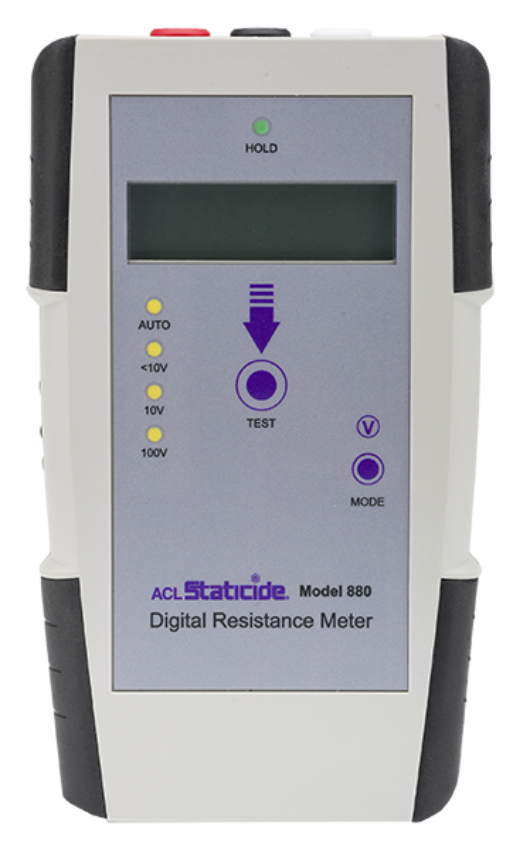

ACL 880 Digital Megohmmeter

Get a Price/Quote

MOQ : 1 Piece

ACL 880 Digital Megohmmeter Specification

Equipment Type
Testing Equipment

Features
Compact, Easy-to-use

Control System
Manual push-button

Condition
New

Power Source
Battery

Power Consumption
Low

Voltage
9V DC battery

Feature
LCD Display, Battery operated

Attributes
Accurate insulation resistance measurement, Portable design

Insulation Resistance Range
Up to 2000M

Resistance Test Voltage
250V, 500V, 1000V selectable

Test Accuracy
2% of reading

Continuity Measurement
Yes

Display Type
Digital LCD

Storage Temperature
-10C to 50C

Auto Power Off
Yes

Test Leads Provided
Yes (with alligator clips)

Operating Temperature
0C to 40C

Weight
Approx. 400 g

Dimensions
Approx. 150mm x 100mm x 70mm

Safety Standard
IEC 61010-1 CAT III 600V

Data Hold Function
Yes

Model Number
ACL 880

About ACL 880 Digital Megohmmeter

High-precision resistance audit kit

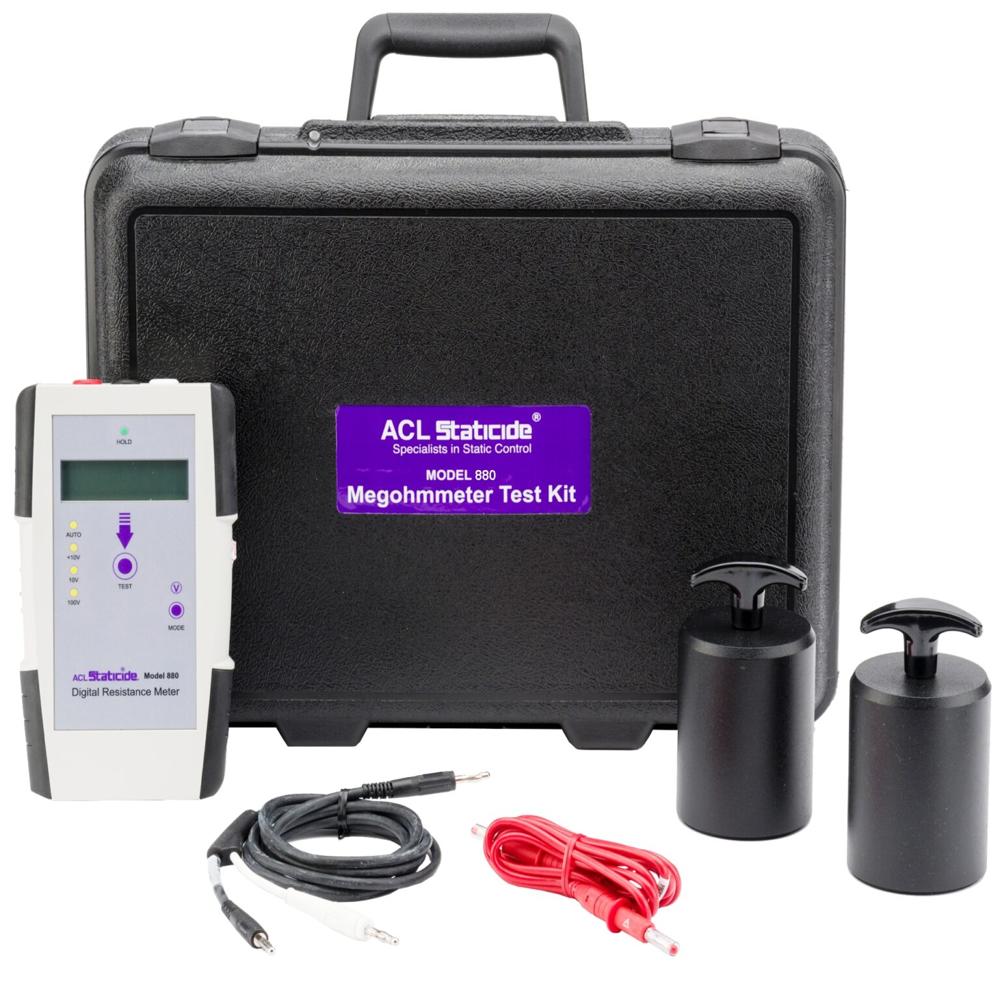

The ACL 880 Digital Megohmmeter is a highly accurate and
dependable audit kit that is designed to test static dissipative surfaces for electrical resistance according to industry standards. Point-to-
point (RTT) and resistance-to-ground (RTG) tests are easy to perform with the calibrated five-pound powder-coated electrodes.

Unlike analog meters with LEDs, test results are shown in actual
precise numeric value rather than decade value in logarithmic scale.
Accuracy is increased by eliminating electronic noise with ultra
high-tech, heavy-duty shielded cables. Auditing is simplified by
operating the tester in a choice of modes: automatic for 10-second
measurement hold or continuous for uninterrupted inspection
testing. Test voltages can be applied manually or automatically.

This meter is suitable to use in any environment using static
controlled materials including electrostatic protected areas.

Ideal for the following applications:
Electrical device manufacturing
EPA audits
Maintenance checks
Quality control and incoming inspection
Static control material production

Accurate Insulation Resistance Testing

The ACL 880 is renowned for its ability to deliver highly accurate insulation resistance measurements, with a test accuracy of 2%. Its state-of-the-art digital LCD ensures easy-to-read results at varied selectable voltages (250V, 500V, 1000V), making it suitable for different testing requirements across diverse electrical systems.

Portable and Convenient Design

Designed for on-the-go professionals, the ACL 880 features a lightweight, compact construction and is powered by a 9V DC battery. Its integrated auto power-off function and low power consumption extend battery life, making it the perfect companion for fieldwork, quick diagnostics, and routine maintenance checks.

User-Friendly Features for Enhanced Testing

The ACL 880 is equipped with continuity measurement, data hold function, and manual push-button controls to streamline the testing process. The package includes test leads with alligator clips for secure connections. Safety is prioritized with IEC 61010-1 CAT III 600V compliance, ensuring reliable performance during every test.

FAQ's of ACL 880 Digital Megohmmeter:

Q: How do I select the test voltage on the ACL 880 Digital Megohmmeter?

A: To select the test voltage, use the manual push-button control on the instrument. The ACL 880 allows you to change between 250V, 500V, and 1000V settings based on your insulation testing needs.

Q: What types of applications can benefit from using the ACL 880?

A: The ACL 880 is ideal for testing insulation resistance in cables, electrical installations, and motor windings. Its accuracy and portability make it suitable for use in both industrial environments and on-site service tasks.

Q: When should I use the data hold function during measurements?

A: Use the data hold function when you need to freeze or retain the current resistance measurement on the LCD screen. This feature is particularly helpful when testing in hard-to-reach places or when recording results manually.

Q: Where can the ACL 880 Digital Megohmmeter be safely operated and stored?

A: You can operate the ACL 880 in temperatures ranging from 0C to 40C, and it can be stored safely between -10C and 50C. Its robust design ensures reliable operation in varied field or laboratory conditions.

Q: What is the process for performing an insulation resistance test with the ACL 880?

A: Connect the provided test leads with alligator clips to the device under test, select the appropriate voltage, and press the manual push-button to initiate the measurement. The digital display will show the insulation resistance value for easy reading.

Q: Is the ACL 880 Digital Megohmmeter compliant with industry safety standards?

A: Yes, the ACL 880 meets IEC 61010-1 CAT III 600V safety standards, ensuring safe and reliable operation during high-voltage insulation testing tasks.

Q: What benefits does the auto power-off feature provide?

A: The auto power-off feature helps extend battery life by automatically shutting down the device after a period of inactivity, making the ACL 880 more efficient and convenient for field use.
